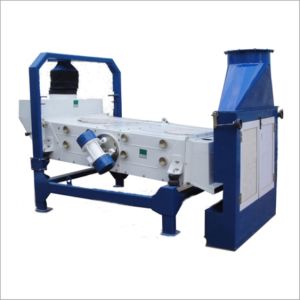

Vibro Separator

Vibro Separator machine in the pre-cleaning and cleaning section works to remove impurities by sizes having 2 nets and fitted with 2 nos. Vibro motors at both side of the body frame and mounted on the plate with the body of machine to adjust the stroke as per requirement.The 1st net is of 6.5 mm - 6mm/6mm - 5.5 mm / 5.5mm - 5mm to allow wheat and smaller impurities but to separate the bigger/longer impurities over the net and the 2nd net is of 2.5 mm triangular perforation separating wheat with a little bit impurities over 2.5mm size but allow to pass small impurities for separation. This separator is attached with an Aspiration channel and the so cleaned wheat is coming to the hopper of the aspiration channel over a magnetic rod in a wide stream to effect the separation of ferrous material in the flow if any remain with the wheat.The aspiration channel is joined with an air duct line of 200 mm dia to aspire by an air flow at a low pressure to collect the fine and dusty impurities from the wheat flow. Based in kanpur(india), we hold specialization in offering quality products that are the perfect outcome of premium material and modern manufacturing techniques. If you want to purchase quality with quantity, we are the name to be reckoned with! we are affianced in making available vibro separator.
